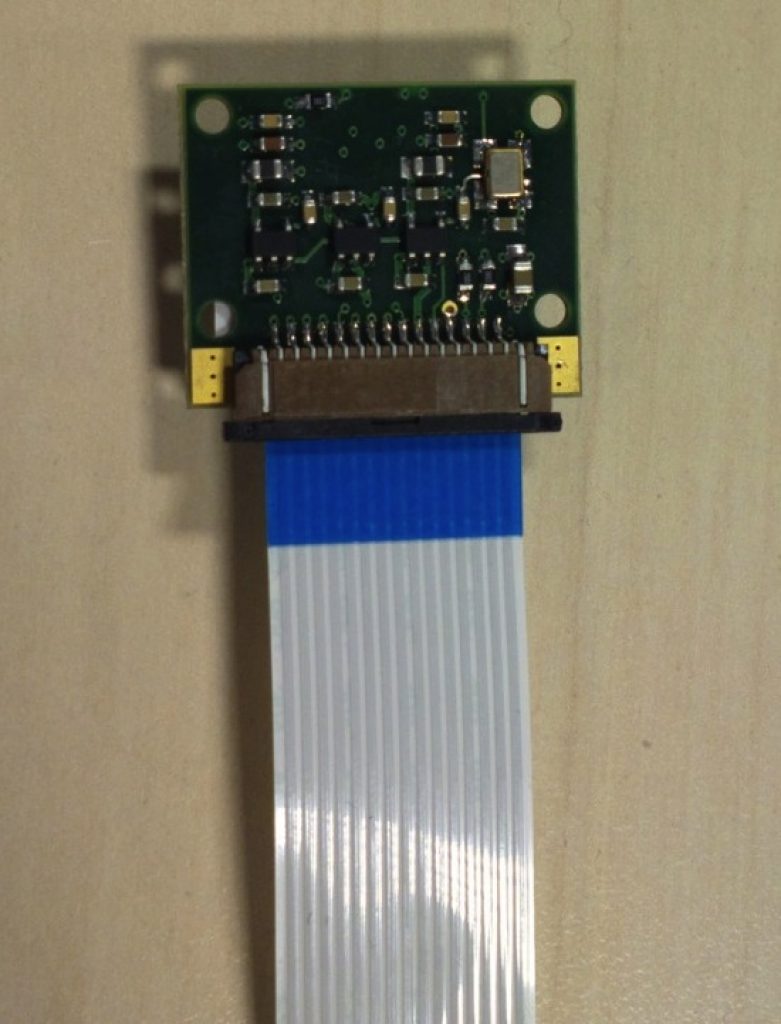

Late last November, I mentioned that a 5 Mpixel add-in camera module was under active development for the popular (at least to most folks), inexpensive Raspberry Pi hobbyist board. At the time, I passed along its then-only-estimated $25 price tag, and wasn't able to share an availability timeframe with you. I still don't have a firm production date, but a more recent blog update from the Raspberry Pi Foundation suggests that we're getting close; the above photograph (and its below counterpart of the module back-side) shows the claimed final hardware:
Due in no small part to continued software driver development and optimization work, the Foundation isn't yet ready to release the module into the wild. The blog post author comments, "I don’t have a release date for you yet, but we’re probably at least a month away (and possibly more) from being able to sell these at the moment." Still, the reported progress makes for encouraging news. And as BDTI senior software engineer Eric Gregori noted in last November's writeup, the Raspberry Pi hardware is capable of implementing not only elementary image capture but also embedded vision processing capabilities…at least the $35 first-generation hardware is.
Some of you may have already heard about the Raspberry Pi "A" model, which at $25, is $10 lesser than its earlier-released "B" sibling. How did the Foundation accomplish this cost-slimming move? Here are the fundamental differences between the two versions:
|
|
Model A |
Model B |
|
Price |
$25 |
$35 |
|
Memory (SDRAM, shared with GPU) |
256 MB |
512 MB |
|
USB 2.0 ports |
1 |
2 |
|
Onboard networking |
N/A |
10/100 Mbps Ethernet |
|
Power consumption |
300 mA (1.5W) |
700 mA (3.5W) |
While it might be convenient to use Ethernet to interface the Raspberry Pi to a networked webcam, other camera connectivity options also exist on the model "A"; the sole remaining USB 2.0 port, for example, or the interface leveraged by the above-mentioned camera module. The only variation between the two versions that notably concerns me from an embedded vision capability standpoint is the reduction in system memory; I've asked Gregori to comment on the matter. Until then, content yourself with a model "A" first-purchaser's video of initial experiences:
And here's some additional reading material on the camera module:
UPDATE: Now shipping!
