April 7, 2017 – The powerful, extremely small VC Z embedded vision systems from Vision Components offer real-time image processing suitable for all kinds of demanding applications. All models are equipped with Xilinx’ Zynq module, a dual-core ARM Cortex-A9 with 866 MHz and an integrated FPGA. Their extremely compact design and very low power consumption make them ideally suited for applications requiring high speeds but with limited installation space. The new camera generation is based on the board camera series VCSBC nano Z. With a footprint of 40 x 65 mm and comprehensive adaptability regarding installation and connection, these flexible systems are especially easy to integrate into machines and plants.

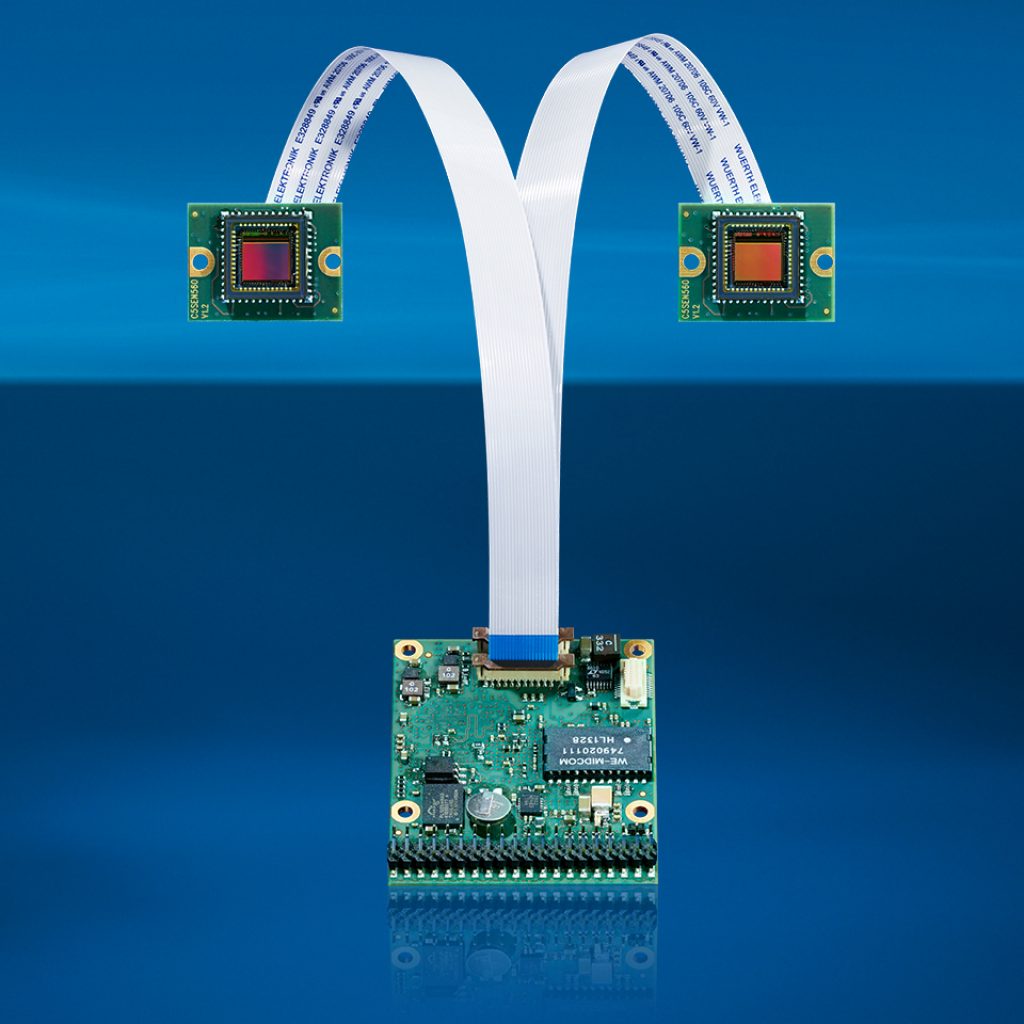

Illustration 1: The VC Z series of intelligent cameras with VC Linux operating system and optional FPGA programming are ideally suited for high-speed applications with limited available space
Users can choose between two enclosed camera types: the VC nano Z, measuring 80 x 45 x 20 mm, and the VC pro Z with IP67 ingress protection, which measures 88 x 58 x 36 mm and can be fitted with a lens and an integrated LED illumination. All Z camera models feature several CMOS sensors. In addition, the board camera versions are available with an on-board sensor or with one or two external sensors with 30 mm or 80 mm ribbon cables. The new VC Linux operating system ensures optimal interaction between hardware and software. For users seeking to fully exploit the performance potential of the hardware, Vision Components also offers an FPGA programming service which can accelerate processing speeds many times over. Like all VC cameras, Z series cameras come complete with the free-of-charge VCLib software library, which provides over 300 basic industrial image processing functions such as pattern matching, that can be tested and debugged in advance in a simulation environment.

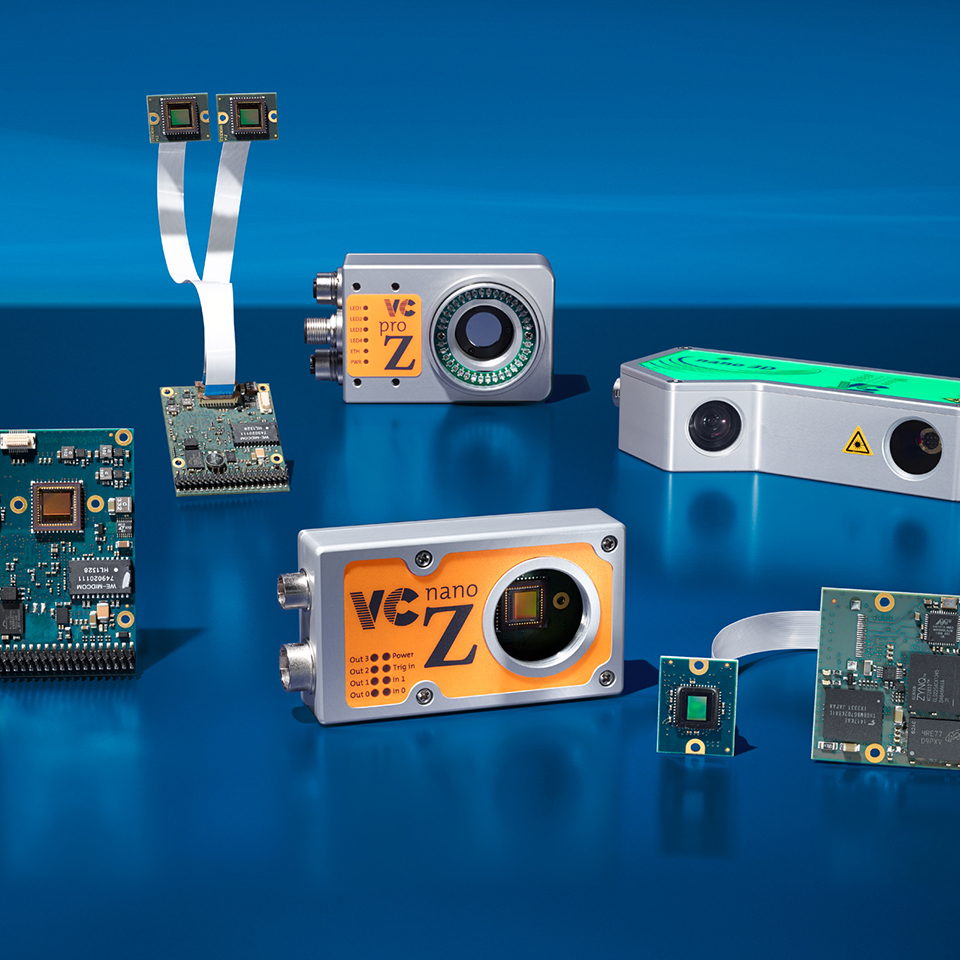

Illustration 2: High-speed image processing capabilities are available with board cameras and rugged enclosed models integrating optics and lighting
About Vision Components
Founded in 1996 by Michael Engel, inventor of the first intelligent camera for industrial applications, Vision Components GmbH is a leading supplier in the field of machine vision. Branches and distributors represent the Ettlingen-based company worldwide in more than 25 countries. Vision Components develops and distributes intelligent, network-compatible real-time Smart Cameras which are able to operate without a PC. These embedded vision solutions can be easily integrated into almost any machine or plant. Customers can choose between models with ARM processors and VC Linux firmware or DSP-based models with the proprietary VCRT operating system. The product portfolio includes Smart Cameras with or without a protective housing, single board cameras, and vision sensors. Vision Components also develops custom-tailored machine vision solutions for a wide range of applications. Amongst others, typical applications include quality inspection and automation. Furthermore, VC provides free software libraries for many applications including license plate recognition, motion capture, decoding, measurement, and positioning.
